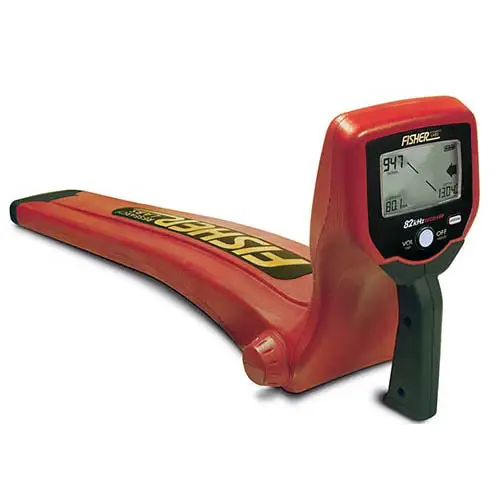

Fisher Labs TW-82 – Digital Underground Line Tracer

The Fisher TW-82 is a dependable, easy-to-use tool for locating buried pipes, cables, and conductive utilities. It’s designed for utility professionals who need accuracy, durability, and straightforward operation.

Key Features

• Precise Single Frequency – Operates at 82.175 kHz for accurate, interference-resistant line tracing.


• Two Power Modes


  • Normal: ~0.25 W for standard conditions (2–8,000 Ω).


  • High: ~1.0 W for deeper or more conductive lines (2–3,000 Ω).


• Adaptive Load Matching – Automatically adjusts to soil and line conditions.


• Three Tracing Methods


  • Direct Connection – Ground rod & cables.


  • Inductive – Magnetic field energizes the line.


  • Coupling Clamp – Applies signal without direct contact.

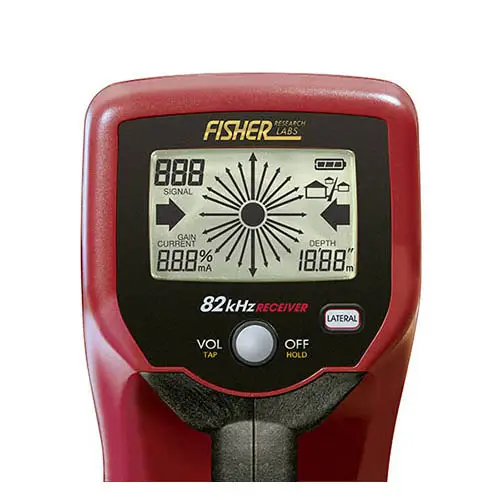

• Digital Receiver Guidance – Left/right arrows, signal strength, and depth readouts.


• Weather-Resistant Design – IP65-rated and impact-resistant housing.


• Long Battery Life –


  • Transmitter: 130–160 hours (Normal mode)


  • Receiver: 40–100 hours
